Description

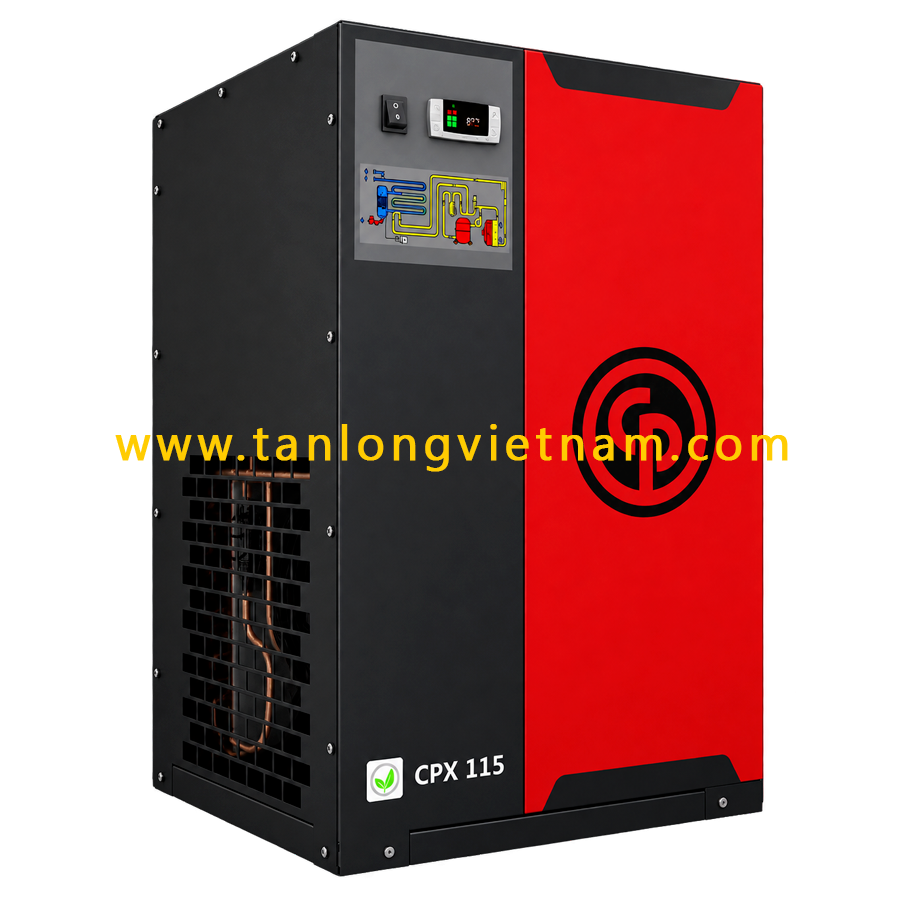

Chicago Pneumatic CPX Refrigerant Dryer is designed to provide reliable moisture removal for industrial compressed air systems. The CPX 30–2650 series helps deliver dry compressed air, protecting piping, pneumatic equipment and production processes from moisture-related problems.
With a wide capacity range, efficient heat exchanger technology and reliable condensate management, the Chicago Pneumatic CPX Refrigerant Dryer provides a practical air treatment solution for various industrial applications.
Why Is Dry Compressed Air Important?
Atmospheric air naturally contains water vapor. During compression and cooling, this moisture can condense inside the compressed air system.
If not properly removed, condensate may contribute to corrosion in piping, damage pneumatic equipment, increase maintenance requirements and affect production reliability.
The Chicago Pneumatic CPX Refrigerant Dryer cools the compressed air so that moisture can condense, be separated and discharged before the air reaches downstream equipment.
Key Benefits of Chicago Pneumatic CPX Refrigerant Dryer
Reliable Moisture Removal
The CPX series helps remove moisture from compressed air, reducing the risk of water-related problems in piping, pneumatic tools and downstream equipment.
Efficient Heat Exchanger
The high-efficiency heat exchanger provides effective cooling while helping minimize pressure drop through the dryer.
Electronic Controller
An integrated electronic controller allows operators to monitor dryer operation and dew point, providing convenient control over compressed air treatment.
Reliable Condensate Drain
The CPX series features a timer drain with adjustable drain intervals and discharge times, supporting reliable condensate removal during operation.
Robust Industrial Design
Designed for industrial compressed air installations, the Chicago Pneumatic CPX Refrigerant Dryer combines reliable components with a robust construction for dependable operation.
Chicago Pneumatic CPX 30-2650 Technical Specifications
The CPX range provides multiple capacities to match different compressed air requirements. For the 50 Hz range, published capacities extend from 1,000 to 75,000 l/min (60 to 4,500 m³/h), depending on the model.
| Model | Capacity (l/min) | Capacity (m³/h) | Max. Pressure | Connection |
|---|---|---|---|---|
| CPX 30 | 1,000 | 60 | 13 bar | G3/4″ |
| CPX 50 | 1,500 | 90 | 13 bar | G1″ |
| CPX 75 | 2,100 | 126 | 13 bar | G1″ |
| CPX 115 | 3,500 | 210 | 13 bar | G1.5″ |
| CPX 160 | 4,500 | 270 | 13 bar | G1.5″ |
| CPX 200 | 6,000 | 360 | 13 bar | G2″ |
| CPX 250 | 7,500 | 450 | 13 bar | G2″ |
| CPX 300 | 9,000 | 540 | 13 bar | G2″ |
| CPX 380 | 11,500 | 690 | 13 bar | G2.5″ |
| CPX 480 | 15,000 | 900 | 13 bar | G2.5″ |
| CPX 600 | 17,500 | 1,050 | 13 bar | G2.5″ |
| CPX 700 | 22,500 | 1,350 | 13 bar | G2.5″ |
| CPX 870 | 24,600 | 1,476 | 10 bar | G2.5″ |
| CPX 1270 | 36,000 | 2,160 | 10 bar | DN100 |
| CPX 1560 | 45,000 | 2,700 | 10 bar | DN100 |
| CPX 1800 | 51,000 | 3,060 | 10 bar | DN100 |
| CPX 2120 | 60,000 | 3,600 | 10 bar | DN150 |
| CPX 2650 | 75,000 | 4,500 | 10 bar | DN150 |
The appropriate model should be selected according to actual compressed air flow, operating pressure, inlet conditions and required air quality.
Why Choose the CPX 30-2650 Series?
Selecting the right air dryer is not simply a matter of matching the pipe connection. Air flow, pressure, inlet temperature, ambient conditions and the required compressed air quality should all be considered.
With models covering a broad range of compressed air capacities, the Chicago Pneumatic CPX Refrigerant Dryer allows users to select a dryer that matches the actual requirements of their compressed air system.
Combined with an efficient heat exchanger, electronic monitoring and reliable condensate removal, the CPX series provides a practical solution for industrial air treatment.
Chicago Pneumatic CPX Refrigerant Dryer – Reliable Air Treatment Solution
The Chicago Pneumatic CPX Refrigerant Dryer helps protect compressed air systems against moisture while supporting reliable operation of downstream equipment.
From smaller compressed air installations to higher-flow industrial systems, the CPX 30-2650 range provides multiple configurations for different operating requirements.
Contact Tan Long for consultation and selection of the appropriate Chicago Pneumatic CPX Refrigerant Dryer for your compressed air system.
✦ ✦ ✦ ✦ ✦ ✦ ✦ ✦
