Description

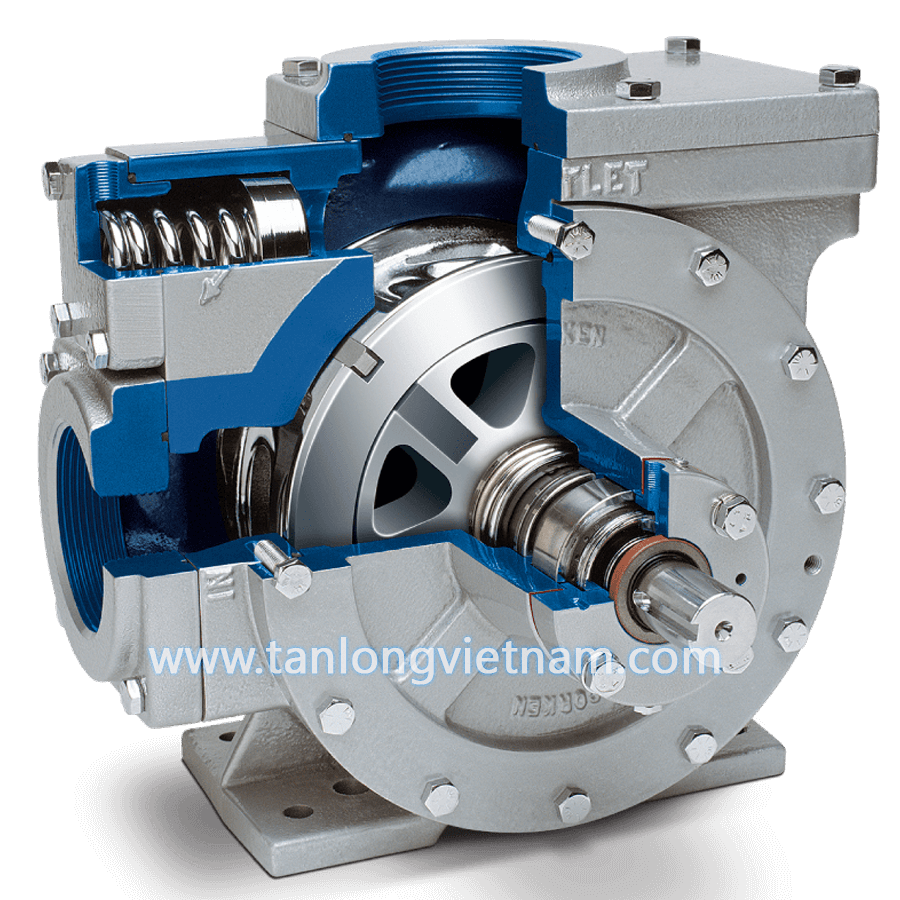

About Corken Z3500
Higher flow rates for faster loading and unloading
- The Z3500 is a three-inch foot mount designed for both stationary and truck applications. This high capacity pump is capable of loading or unloading dual bobtail trucks. The locked rotor design ensures reliable performance and a long service life.
- Installation is easy! The Z3500 retrofits the Corken model 1021 pump and other competitive three-inch pumps with little to no change in piping.
Advantages for Corken Z3500
- Unlike competitive pumps restricted to 640 RPM, the Z3500 can operate up to 800 RPM.
- Offers up to 7% or more capacity than competitive pumps at typical operating conditions.
- Silicon carbide seal seat offers unmatched sealing performance and a longer service life. Higher flow rates for faster loading and unloading…
- Large diameter, non-metallic vane drivers are not speed sensitive allowing the pump to operate at a higher RPMs without causing damage.
- Advanced material specification for cam and blades extends the service life.
- Unique porting and profiling of the cam reduces cavitation and noise and improves pump efficiency.
Operating Specification for Corken Z3500
- RPM range: 420 – 800 RPM
- Max working pressure: 350 psig (24.1 bar g)
- Temperature range: -25°F – 225°F (-32°C – 107°C)
- Internal relief valve: Yes
- Max differential pressure: 150 psid (10.3 bar d)
- Flow range: 52 – 197 gpm (197 – 746 L/min)
=======================================
