Showing all 9 results
-
Travaini – TRH
3500 m3/h
33 mbar
15 ° C - 20 ° C
Double stage liquid ring vacuum pumps for high vacuum.
-
Travaini – TRS
- 3500 m³/h
- 33 mbar
Single stage liquid ring vacuum pumps for low and mid vacuum
-
Travaini – TRV
- 2000 m3/h
- 33 mbar
The TRVX series of single-stage liquid ring vacuum pumps introduces an innovative project, new performance, greater reliability and is the result of Pompetravaini’s experience and feedbacks from end users. The result is a milestone in the design and production of liquid ring vacuum pumps, offering tangible benefits to users.
Technical details
The new hydraulic profile allows a performance increase over 10% than the traditional liquid ring vacuum pump designs. Increases the efficiency and operational cost savings all over the entire pump life.
The pump weight is average 30% less compared with the traditional liquid ring vacuum pump designs with compact supporting components dimensions. This advantage allows installation and transportation costs saving
Compact dimensions and volume (L x W x H) 50% less compared with the traditional liquid ring vacuum pump designs. Optimization of factory or plant installation spaces and related costs saving.Single and direct service liquid connection. Easy pump fitting without the use of complicate piping. This ensures a fast and economic pump installation
Central body impeller housing with integrated suction and discharge manifolds with compact overall dimensions. This feature reduces pump components and increases robustness. The maintenance and assembly time and costs saving result to be greatly advantaged.
The suction and discharge port plates are always in stainless steel allowing a greater reliability trough the time and ensuring stable performances. They never require to be replaced during ordinary maintenance reducing down the spare parts cost. -

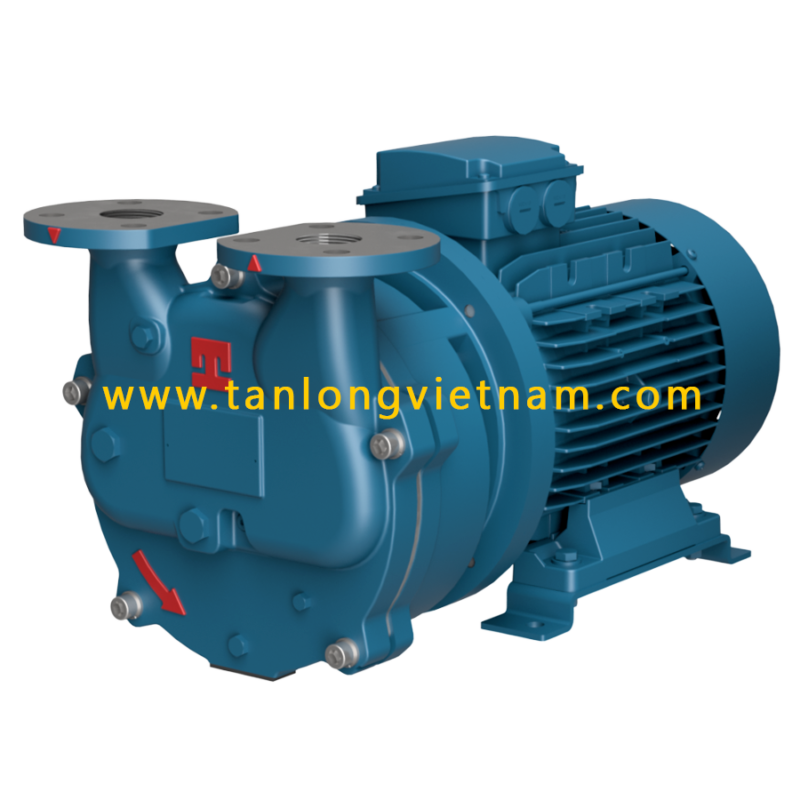

Travaini – TRM
- 300 m3/h
- 33 mbar
Monoblock monostage liquid ring vacuum pumps for high, medium and low vacuum.The TRMX series is the transfer of all the TRVX series basic concepts on the monoblock pumps production. The result is an economical pump with outstanding performance and reliability.
The TRMX series is the transfer of all the TRVX series basic concepts on the monoblock pumps production. The result is an economical pump with outstanding performance and reliability.
The new hydraulic profile design allows a performance increase from 10% to 20% compared with previous series. This increases the efficiency and operational cost savings all over the entire pump life.
Compared with the previous TRMB series, the TRMX is 10% lighter. The volume is 10-20% smaller. These two features permit fast and less expensive installations.
Maximum flexibility for handling the sealing liquid. In std. condition the TRMX series requires up to 40% less sealing fluid flow compared with the previous TRMB series, ensuring a big saving in the operating cost. In the applications where is required the possibility to aspirate big sealing liquid flow, pumps are supplied with enhanced higher sealing liquid flow capabilityInox port plate with laser cut port profiles. This solution make the port plate free from wear and the laser cut ports guarantee the execution of the best performing designed profiles. Very noticeable the increase of the pump working economy
Innovative anti-cavitation system derived from the TRVX series. The injection port is located very close to the suction port improving the highest operational vacuum level and guarantee higher efficiency all over the pump vacuum range. With this solution the pump operational cost is reduced in a sensible way.
-
Travaini – TRVN
- --
- --
Single-stage Liquid ring vacuum pumps and compressor, for pharmaceutical, fine chemical and surface treatment of metals
-
Travaini – HYDROSYS
- Max. 3500 m3/h
- Max. 5m bar
The HYDROSYS packages main components. Vacuum systems with total or partial water recirculation. Package vaccuum and compression units with total water or oil recirculation. HYDROSYS include liquid ring vacuum pump, cyclone type air-liquid separator, heat ex-canger and associated accessories all mounted on a fabricated frame.
Benefit
- HYDROSYS systems are factory assembled and piped including discharge separator/reservoir, heat exchanger (air/liquid or air/air), circulating pump, and all required accessories mounted on a common compact baseplate/frame.
STANDARD MATERIALS FOR “HYDROSYS” SYSTEMS: Vacuum pump, Separator reservoir, Heat Exchanger, Circulating pump, Piping, Valves – Thermometer, Level gauge.
-
Travaini – HYDROPACK
- Max. 800 m³/h
- --
The new Hydropack series represents the best solution for compactness, efficiency and functionality in the installation of total recirculation liquid ring vacuum pumps. -
Travaini – OILSYS
- Max. 3500 m³/h
- Max. 5 mbar
OILSYS systems includes a liquid ring vacuun pump from ours series TRH, TRS, TRM, TRV, a separator tank which also as a frame, heat exchanger and oil demister to remove oil fumes
-
Travaini – HYDROTWIN
- Max. 2500 m³/h
- Max. 5 mbar
Hydrotwin is the new series of compact high vacuum packages that guarantee a working vacuum level up to 5 mbar (absolute) and capacities up to 2500 m3/h. Package has been developed in close co-operation with Bora Blowers who specialises in manufacturing pressure and vacuum boosters. A sophisticated electronic control for booster operations has been developed to prevent risks of booster seizure in the event that operating conditions exceed allowable working parameters
